Surface Roughness Measuring Instrument SURFCORDER
Model Lineup
SE300series
SE300 is a portable high-performance surface roughness and waviness measuring instrument, characterized by skidless measurement, built-in high resolute printer, memory for 5 measurement conditions, Cross over the 2 Standards analysis function.
- Wide range
- Portable type corresponding to skidless measurement and step height analysis & printing with high resolution printer.
- High performance pick-up with interchangeable stylus
- Compatible with worldwide Standards
- Automatic calibration in both X and Z directions
| Parameters | 63 parameters such Ra, Rp and Rz |
|---|---|
| Measurement range / resolution | Z: 800 μm / 0.0064 μm |
| Max. measured length | X: 25 mm |
| Measuring magnification | Z: 100 to 100,000 or Auto X: 1 to 1,000 |
| Pick-up | interchangeable stylus Standard stylus: R2 μm , 60ﾂｰ |
| Power supply | AC adaptor |
SE500
SE500 is sophisticated, compact design and high performance model for surface roughness, waviness and steps. Compatible with various parameters and perform simultaneous analysis of multiple Standards. Excellent expandable unit to meet all applications.
- Longest driving range and straightness in portable class
- Combining a touch panel with a switch operation
- Larger margin of recording paper
- Enabling combinations compatible with various applications
| Standards | JIS(2001/94/82), DIN, ISO, ASME |
|---|---|
| Measuring range | Z: 800 μm X: 55 mm |
| Minimum resolution | 0.08 nm |
| Measuring magnification | Z: 50-200,000 or Auto X: 1-1000 or Auto |
| Measuring speed | 0.05-2 mm/s |
| Combinations | 7 models from portable type to stationary type |
SE600
SE600 is complied to worldwide standards including ISO, JIS, DIN, ASME and BS, and each old and current standards. Various filters, cutoff values, measuring length and formula types are provided to meet the standards.
- Complied to worldwide standards
- Free layout of data chart
- Provided automatic calibration of Z and X axis
- Enabling a series of measurements in arbitrary combination with various automated measurement elements
- The refined design
| Standards | JIS(2001/94/82), DIN, ISO, ASME, etc |
|---|---|
| Measuring range | Z: 600 μm X: 100 mm |
| Measuring magnification | Z: 50-500,000 X: 1-5,000 |
| Measuring speed | 0.05-2 mm/s |
| Z traverse range | 250 mm |
| Recording | Free layout |

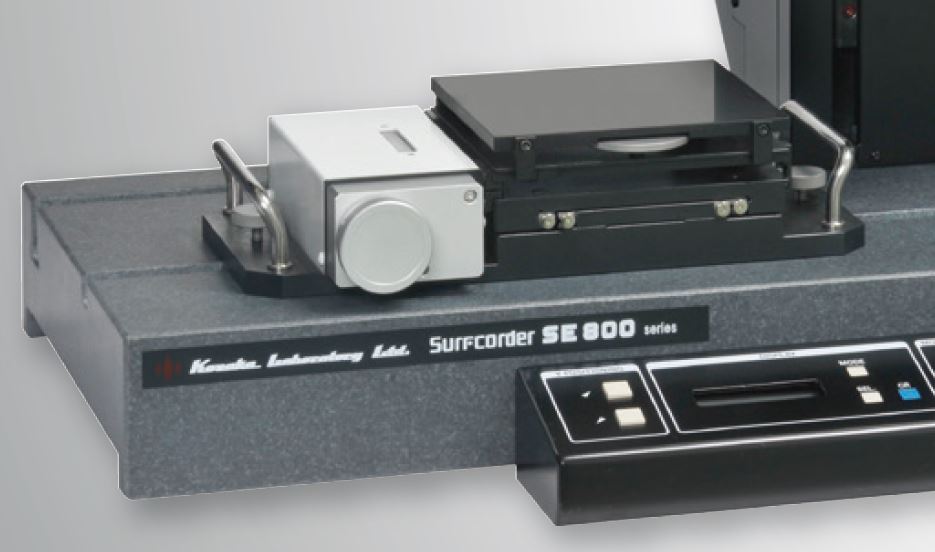

SE600K31
3D surface roughness measuring function is added to SE3500 to enable deep evaluation of a target surface with respect to a line and a plane.
- 2D roughness
- Compatible with various parameters
- Automatic calibration of Z and X axis
- Auto-printing performance
- 3D roughness
- Parallel processing of analysis and measurement
- Recording bird's-eye view or a differential contour
- Max. 100 million sampling points with high resolution
| Standards | JIS(2001/94/82), DIN, ISO, ASME, etc |
|---|---|
| Measuring range | Z: 600 μm X: 100 mm |
| Measuring magnification | Z: 50-500,000 X: 1-5,000 |
| Recording | Recordable in free layout |
| Measuring range | Z: 600 μm X: 100 mm Y: 50 mm |
|---|---|
| Minimum sampling pitch | 1 μm for X and Y |
| Recording | Color recording (bird's eye view, differential contour, etc.), particle analysis, 3D roughness parameter analysis, etc |

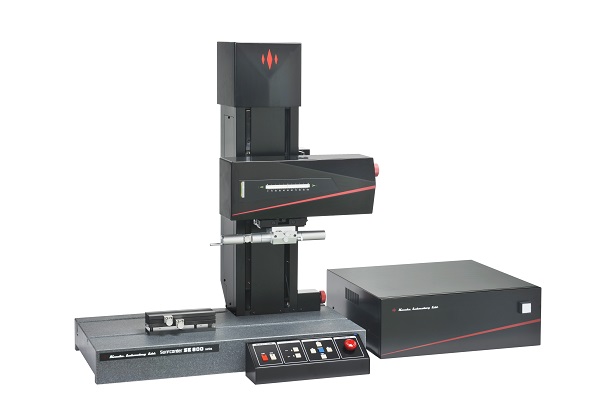

SE700
SE700 is a high-performance surface roughness measuring instrument, upgrated to quick motion, inch size-response driving stroke and higher analysis capabilities.
- Reduction of total measuring time by quick motion
- Compatible with inch size by 120 mm drive
- Cordless pick-up body
- Easy operation with a joystick remote controller
- Advanced analysis and filter processing are possible
| Measurement range | Z: 800 μm X: 120 mm |
|---|---|
| Sampling points / resolution | Max. 32,000 points / 16 bits |
| Straightness | 0.2 μm / 120 mm |
| Measuring magnification | Z: 50-500,000 X: 1-5,000 |
| Measuring speed | 0.05-5 mm/s |
| Z traverse range | 320 mm |

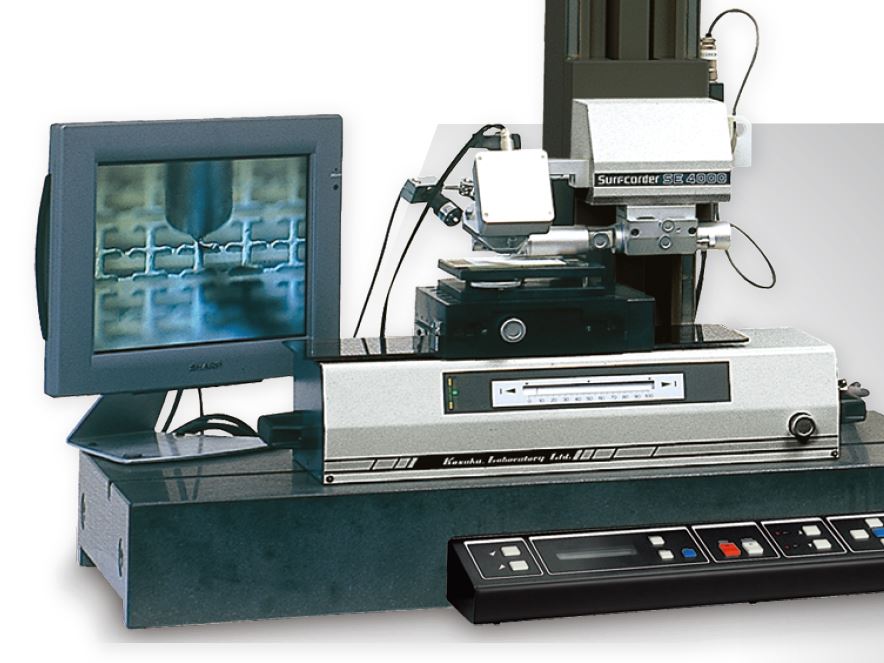

SE4000
SE4000 is stage traverse type with stable straightness, to measure the precision small components.
- Complied to worldwide parameters
- Digital sampling by digital scale
- Fixed pick-up with traverse stage
- Automatic calibration of Z and Y axis
| Standards | JIS(2001/94/82), DIN, ISO, ASME, etc |
|---|---|
| Measuring range | Z: 600 μm X: 100 mm |
| Measuring magnification | Z: 50-500,000 X: 1-5,000 |
| Measuring speed | 0.05-2 mm/s |
| Recording | Recordable in free layout |
Accessory list
- Pick-up / C series
- Pick-up / A series
- Pick-up / D series
- Interchangeable stylus for roughness pick-ups

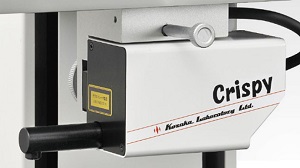

- Non-contact pick-up (PU-OS400)
- Circumferential roughness measuring unit (SRA-21)
- Circumferential roughness measuring system (ZRM-200)
- Universal stage (RAF-11)
- Y-axis motorized stage (RAF-22D)
- XY axis stage (RAF-31)
- Workpiece stage (RAG)
- Rotary motorized stage (RAP-12D)
- Leveling stage (ST series)
